Voltage Measurement Pen

Voltage Measurement Device

Do you work with electricity? If so, you want to provide yourself with the best quality work tools, right? After all, it's not only about performing tasks efficiently but also about your safety and that of others. Measuring voltage and realising electrical inspections has never been that simple. With this smart pen-shaped voltage measurement tool, the task will be efficient and safe for you.

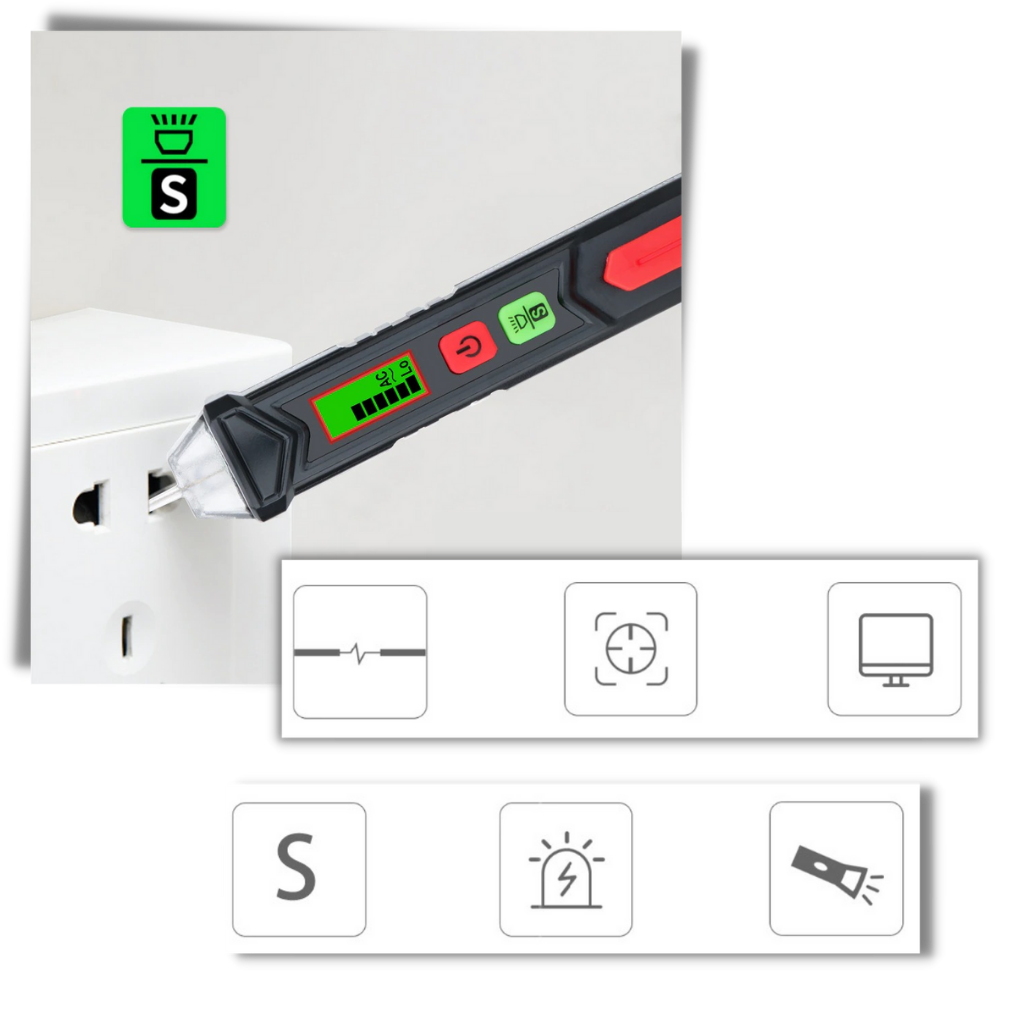

Multiple Functions

Enjoy using this pen-shaped voltage measurement device thanks to its multiple functions. You can read all the results of the measurement on a high-quality LCD display.

Adjust the sensitivity of the measurement depending on whether you want to work with industrial power consumption or home appliances. The low sensitivity range is AC48-1000V whereas the high sensitivity range is AC12-1000V. Switch between them just by clicking the corresponding button. The device will also let you detect the cable breakpoint easily.

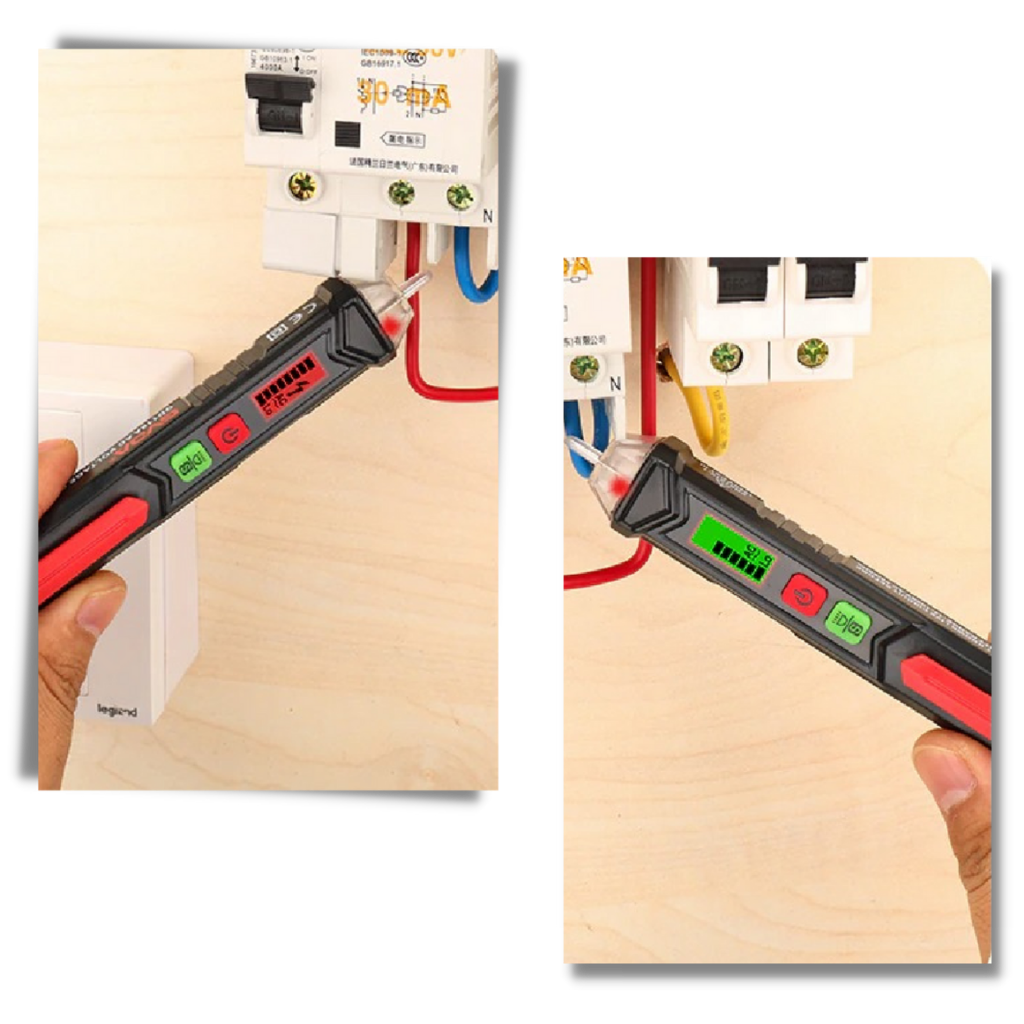

Zero Line and Firewire Detection

This useful pen-shaped measurement device will also help you detect the firewire and zero line. Focus on the sound and light signals displayed by the tool. When the wire signal is weak (zero line detected), the beep will be slow and the signal indicator will turn yellow. Whereas when the firewire is detected, you will hear faster beeping and the signal indicator will turn red.

LED Flashlight Lighting

Not all cables and electric wires are placed in easily accessible and exposed places. Access to some of them can be really difficult. Thanks to the built-in LED flashlight lighting option, this voltage measurement device can be used to work in a dark environment. Just turn the bright LED light on and start working as the space will be well lighted. You can also use the infrared light option or both kinds of lights at the same time.

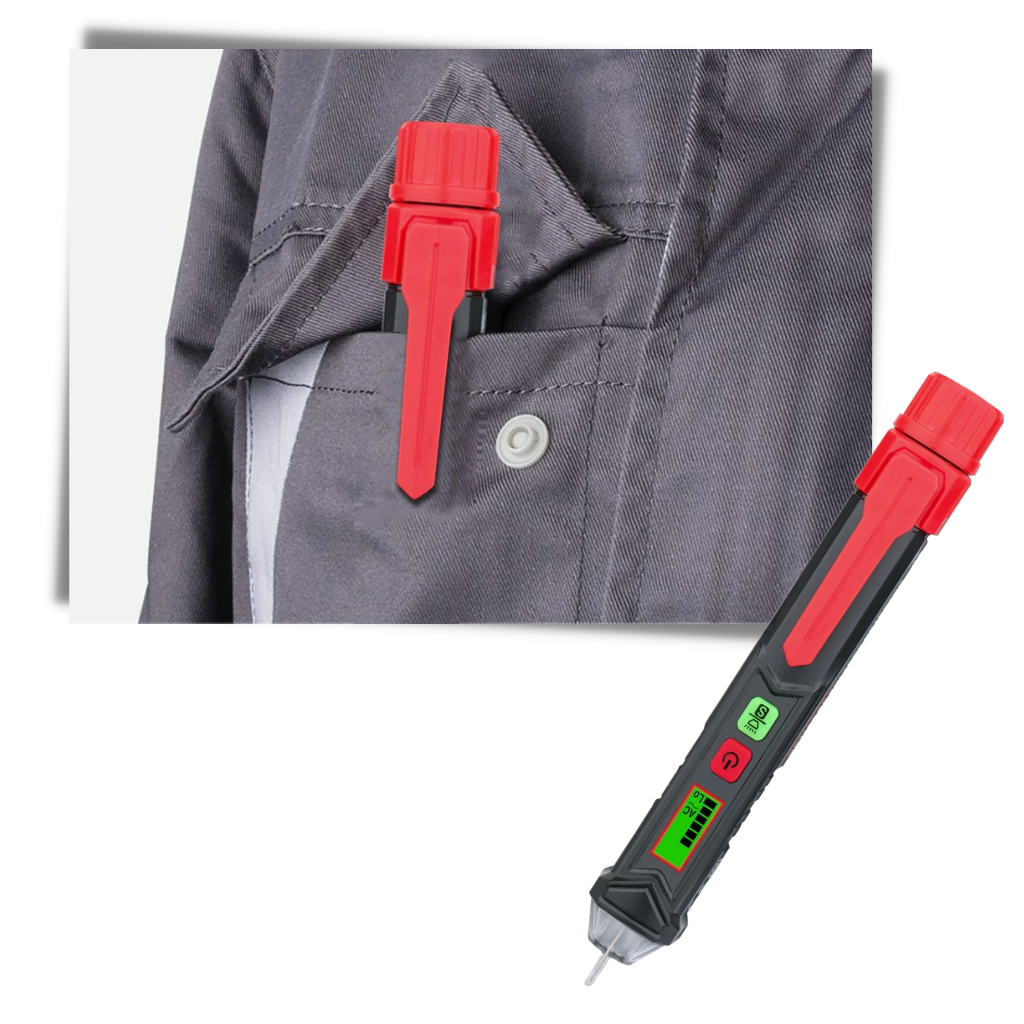

Wireless and Safe

Another great feature of this work accessory is its wireless design. Powered by two 1.5V AAA batteries, this practical voltage measurement pen device doesn’t need any wires or cables to do its work.

Thanks to the high-quality insulation, you’ll be able to carry out zero-contact inspections and take care of your safety.

Though this voltage measuring device has so many different features, it's still lightweight and compact. As it’s shaped like a pen, it won’t take up much space. The portable pen clip design allows you to carry it with you even when you’re not using it so you always have it handy. When you’re not measuring the voltage, you can always put it in your pocket. All the buttons are easy to distinguish thanks to the bright colours of the device.

Technical characteristics :

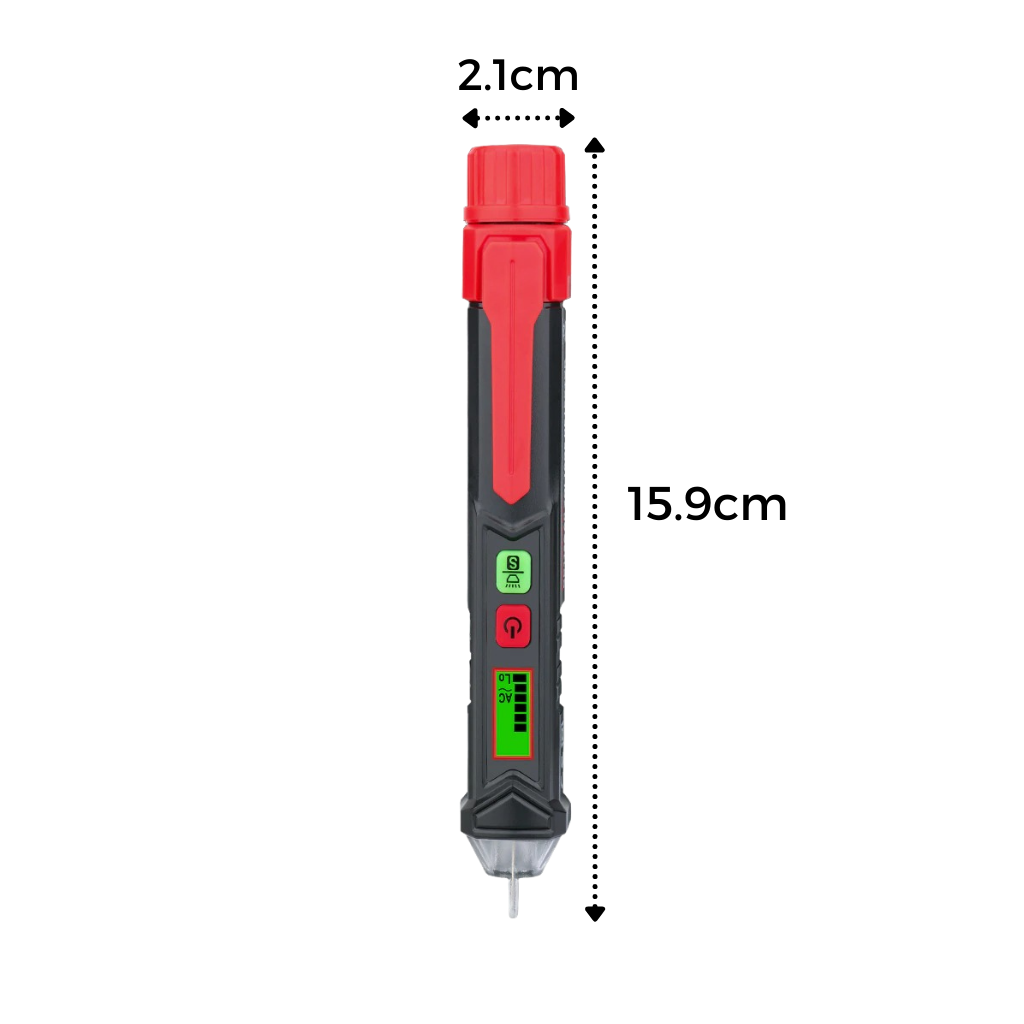

• Item size: 2.1 cm x 15.9 cm
• Item weight: Approx. 45 g
• High sensitivity range: AC12-1000V
• Low sensitivity range: AC48-1000V
• Frequency: 50/60Hz
• Power supply: 2 x 1.5V AAA Batteries (not included)
• Operating temperature: 0-40℃
• Safety rating: EN61010-1, -2-030; EN61326-1, CAT III 1000V

Included :

1 x Voltage measurement pen
